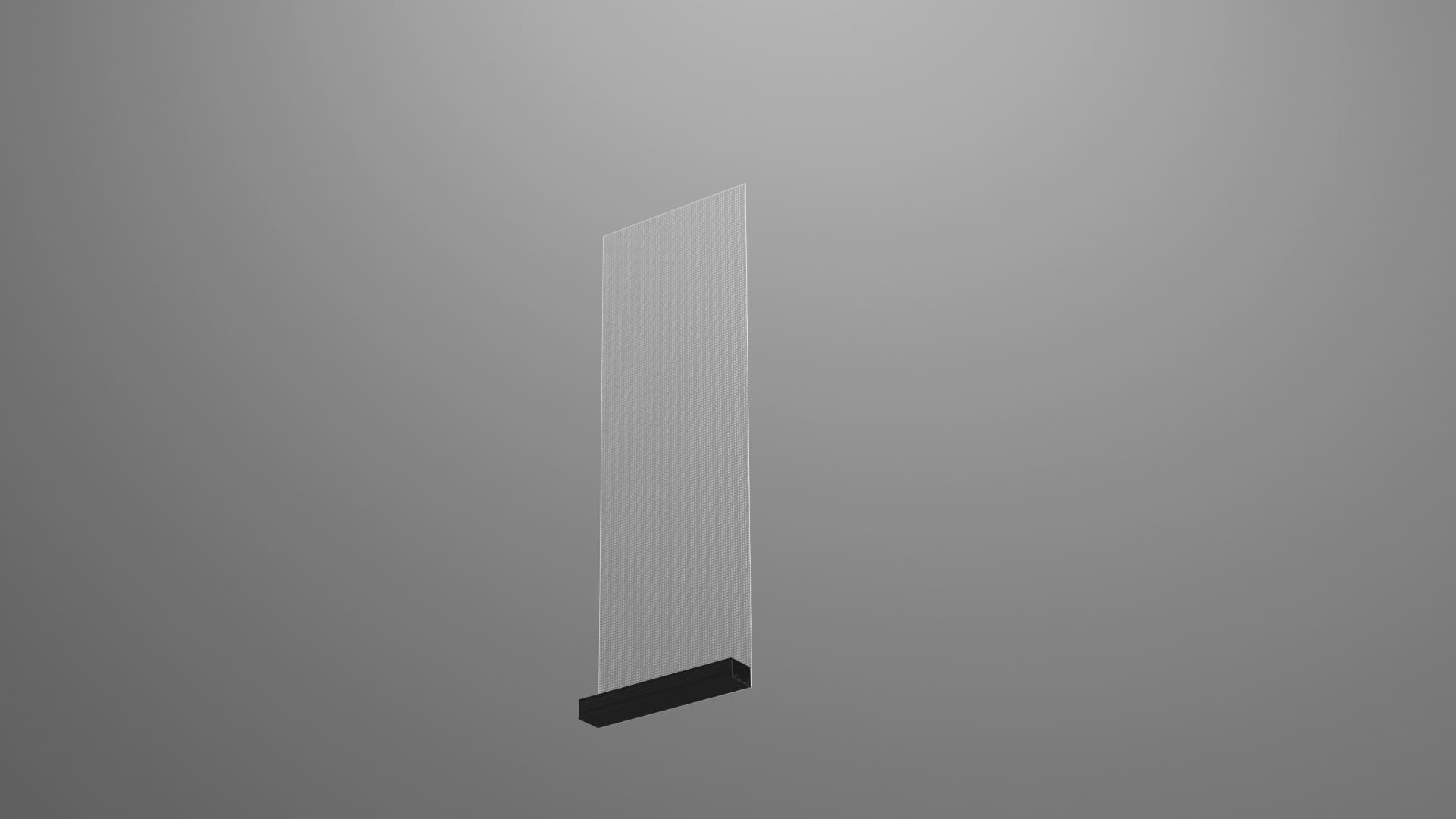

O SERIES
O SERIES

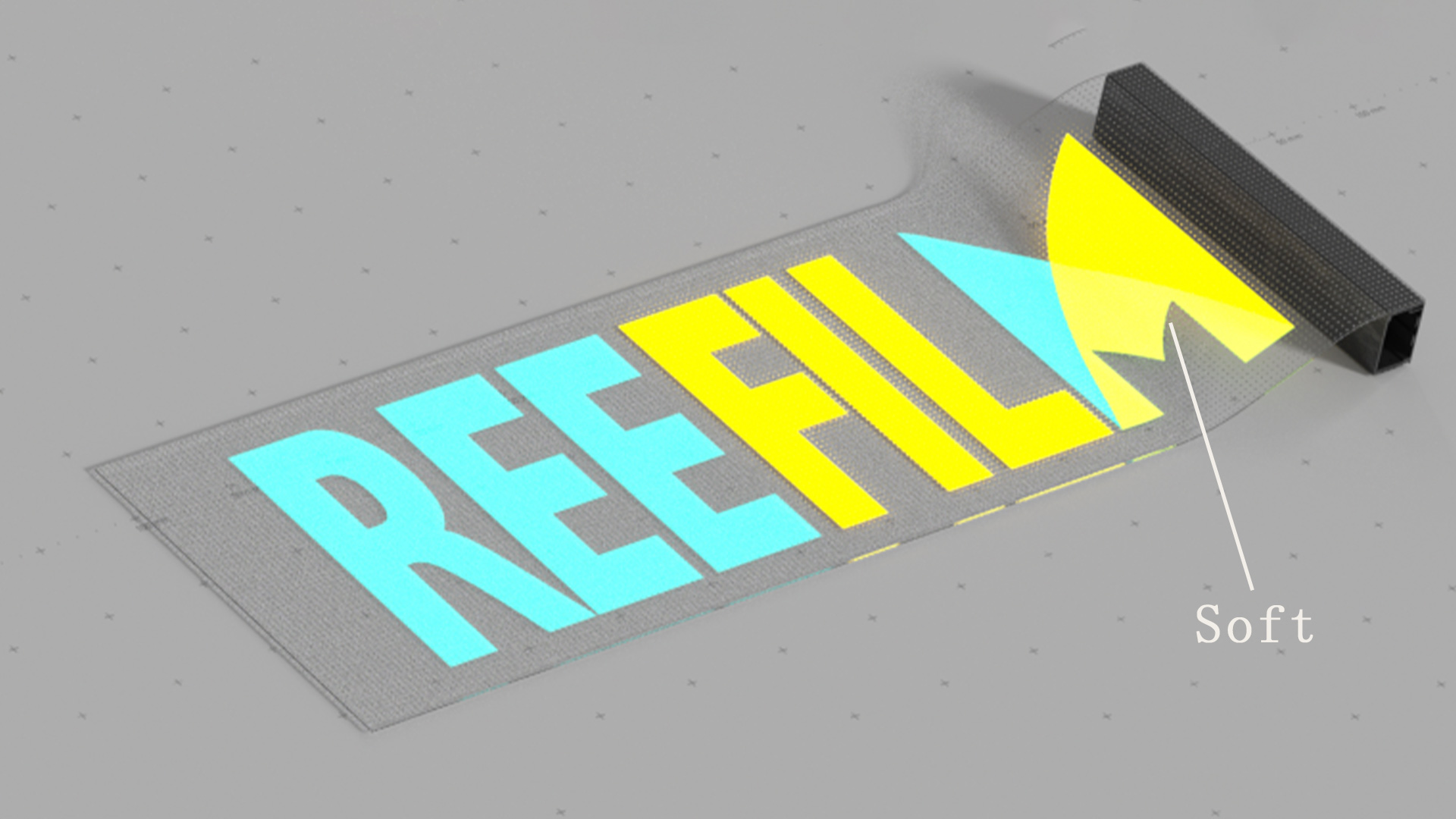

Flexible Transparent LED Film Display
Ultra-thin. Vibrant. Transparent. Flexible.

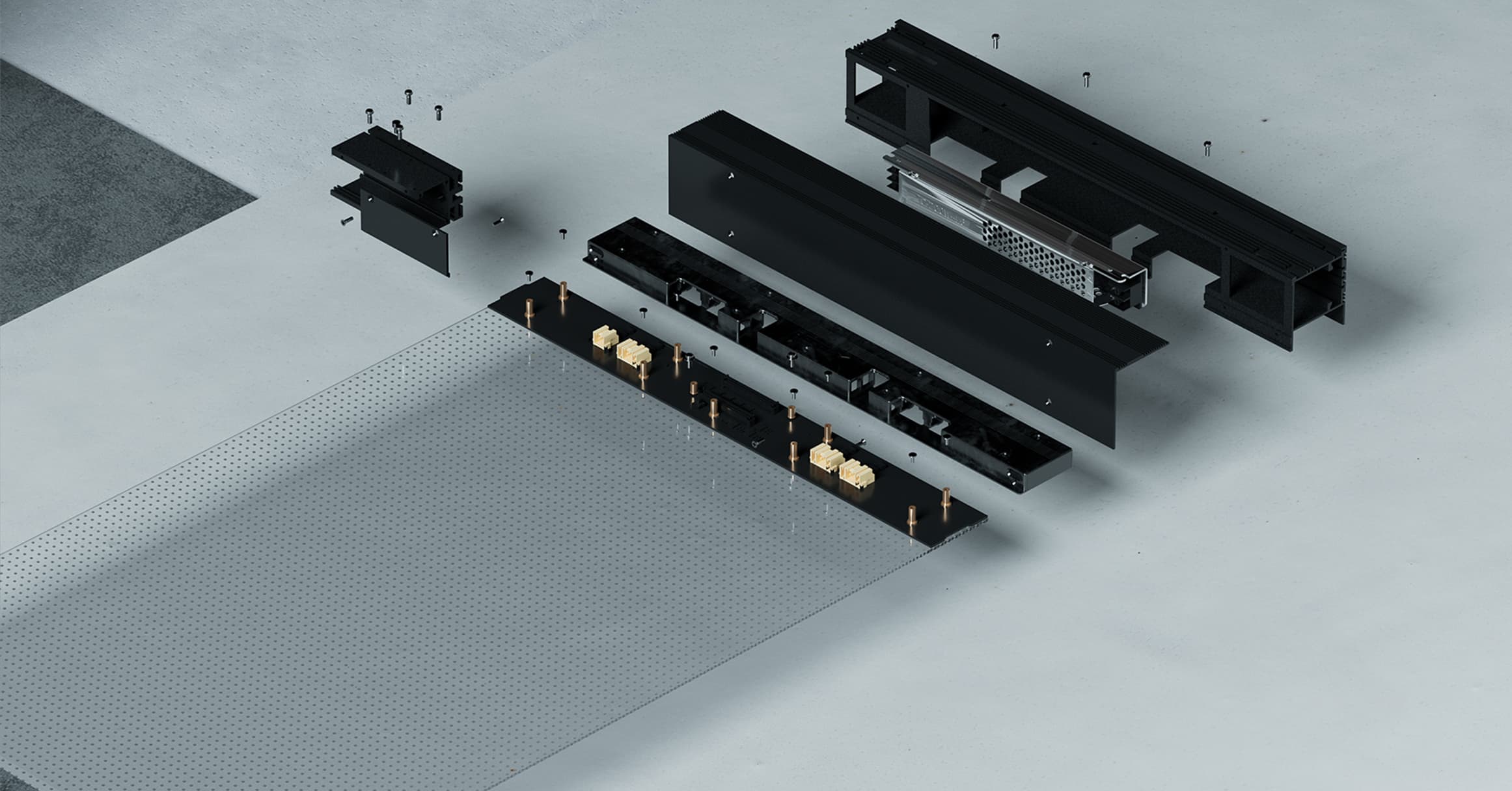

 1778666300684832
Reinvent your space with cutting-edge
transparent LED technology.

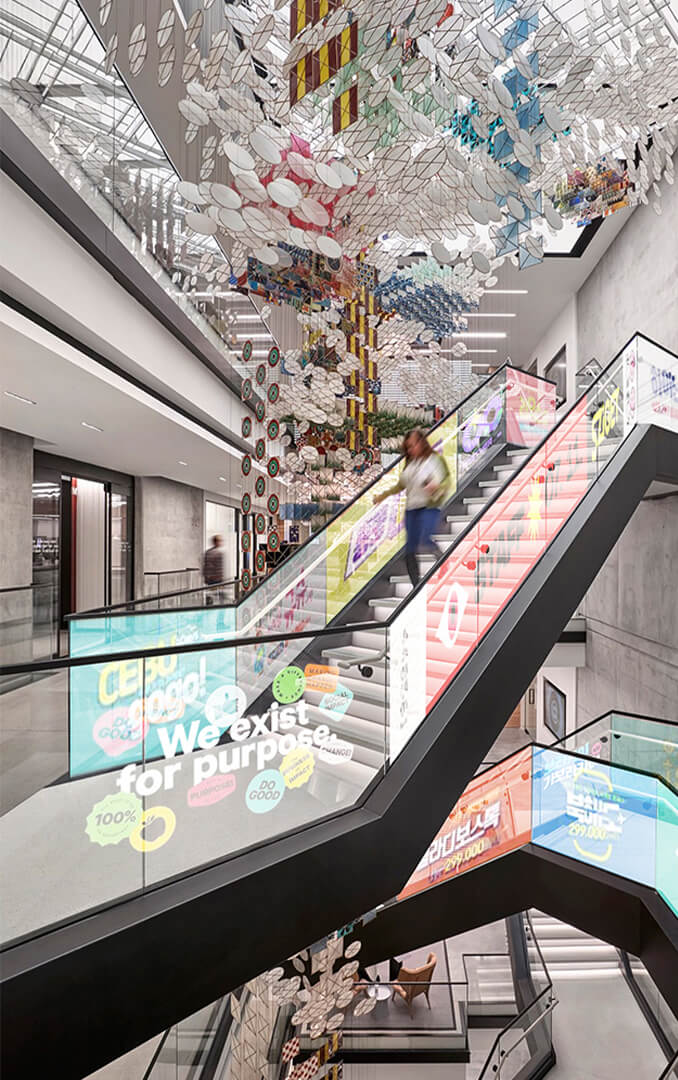

1778666784330809
Glass Guardrail
1778667078906515

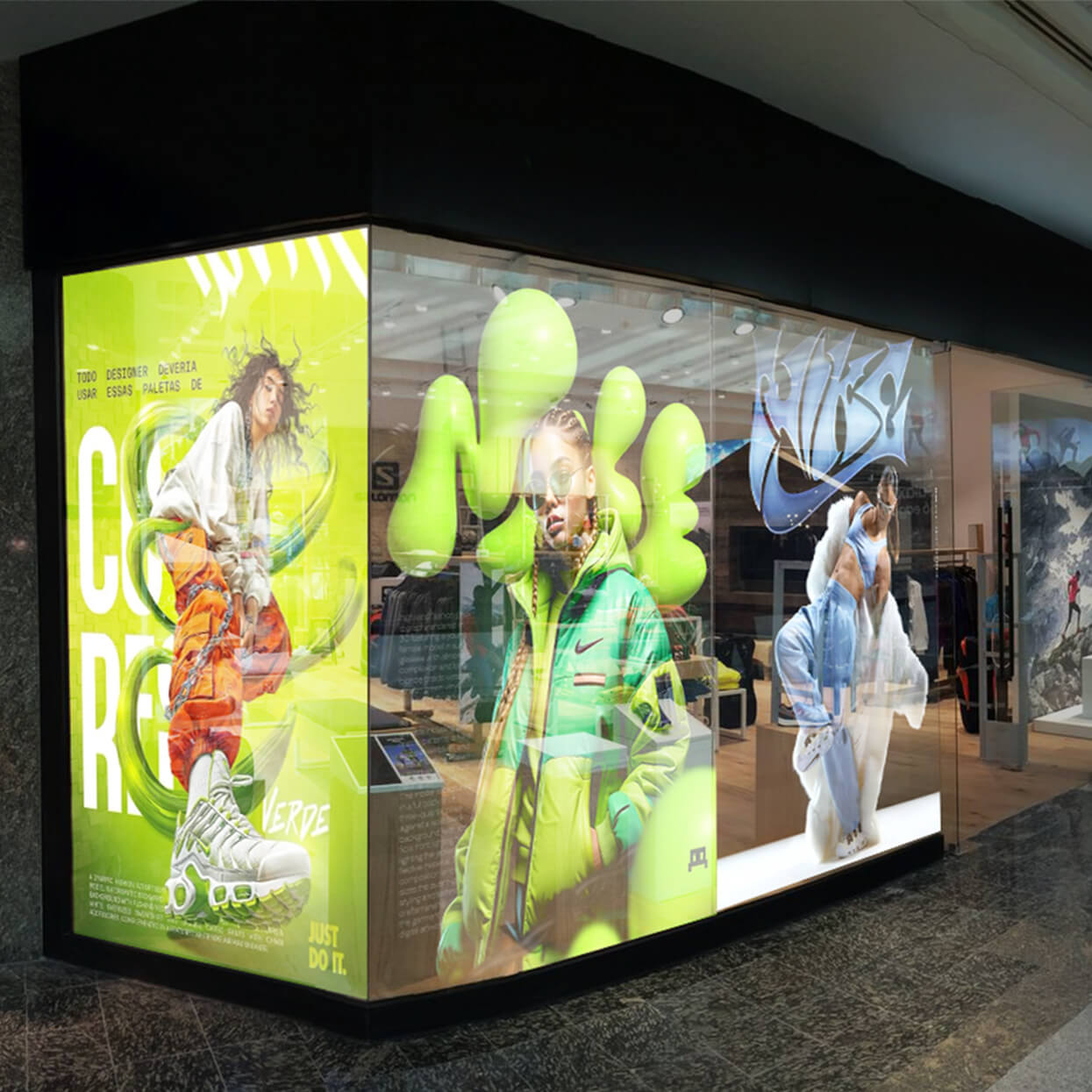

Retail Store
“Tailored to Fit”

Custom sizes and shapes for every project.
          Product Specification Sheet
ModelP4P5P6.25P8P10P15P20
Module Size (mm)240*1000320*1000400*1000400*1000400*1000390*9901000*400
LED LightREE 1313REE 1313REE 1313 / 2121REE 1313 / 2121REE 1313 / 2121REE 2121REE 2121
Brightness cd/㎡200025002000 / 40002000 / 40002000 / 400030003000
Pixel CompositionR1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1
Pixel Pitch (mm)4*45*56.25*6.258*810*1015*1520*20
Module Pixel250*60=15000200*64=12800160*64=10240125*50=6250100*40=400066*26=171650*20=1000
Pixel/㎡625004000025600156251000043562500
Transparency90%91%92%92%94%94%95%
Angle of View°160160160160160160160
Input VoltageAC100-240V50/60HzAC100-240V50/60HzAC100-240V50/60HzAC100-240V50/60HzAC100-240V50/60HzAC100-240V50/60HzAC100-240V50/60Hz
Peak Power600w/㎡600w/㎡600w/㎡600w/㎡600w/㎡600w/㎡600w/㎡
Average Power200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡
Work EnvironmentTemperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%		Temperature -20~55 ℃
Humidity 10-90%
Weight1kg1.3kg1.3kg1.3kg1.3kg1.3kg1.3kg
Thickness2.0mm2.0mm2.0mm2.0mm2.0mm2.0mm2.0mm
Drive ModeStatic StateStatic StateStatic StateStatic StateStatic StateStatic StateStatic State
Control SystemNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/Colorlight
Lifespan100000H100000H100000H100000H100000H100000H100000H
Grayscale Level16bit16bit16bit16bit16bit16bit16bit
Refresh Rate3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz
       Perfect clarity and transparency at any distance.
