| Model | P4 | P5 | P6.25 | P8 | P10 |
|---|---|---|---|---|---|

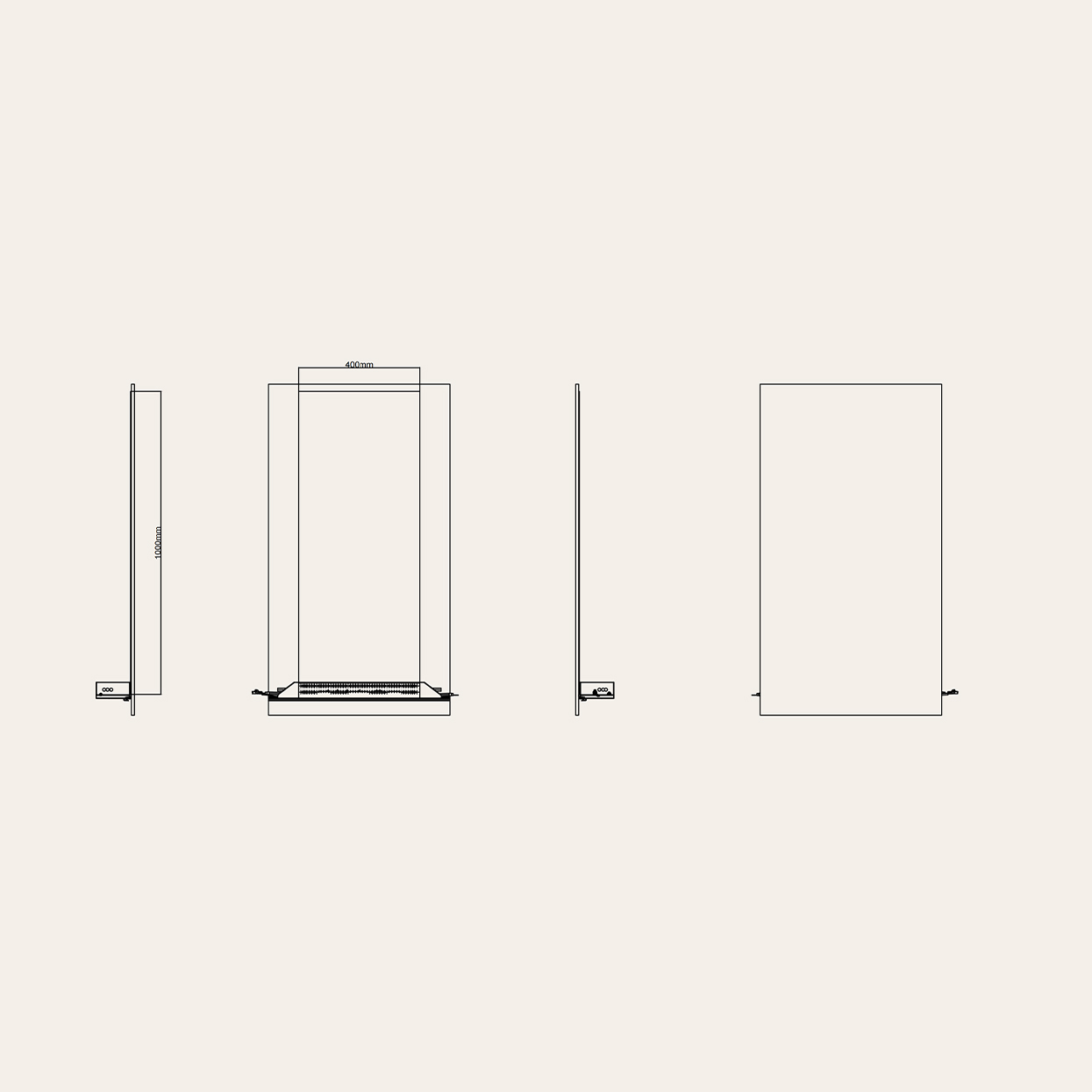

| Module Size (mm) | 240*1000 | 320*1000 | 400*1000 | 400*1000 | 400*1000 |
| LED Light | REE:1313 | REE:1313 | REE:1313 | REE:1313 | REE:1313 |
| Brightness cd/m² | 2000 | 2500 | 2000 | 2000 | 2000 |
| PixelComposition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
| Pixel Pitch (mm) | 4*4 | 5*5 | 6.25*6.25 | 8*8 | 10*10 |
| Module Pixel | 100*250=15000 | 64*200=12800 | 64*160=10240 | 50*125=6250 | 40*100=4000 |
| Pixel/m² | 62500 | 40000 | 25600 | 15625 | 10000 |
| Transparency | 90% | 91% | 92% | 92% | 94% |
| Angle of View° | 160° | 160° | 160° | 160° | 160° |
| Input Voltage | AC100-240V50/60Hz | AC100-240V50/60Hz | AC100-240V50/60Hz | AC100-240V50/60Hz | AC100-240V50/60Hz |
| Peak Power | 600w/m² | 600w/m² | 600w/m² | 600w/m² | 600w/m² |
| Average Power | 200w/m² | 200w/m² | 200w/m² | 200w/m² | 200w/m² |
| Work Environment | Temperature -20~55℃ Humidity 10-90% | Temperature -20~55℃ Humidity 10-90% | Temperature -20~55℃ Humidity 10-90% | Temperature -20~55℃ Humidity 10-90% | Temperature -20~55℃ Humidity 10-90% |
| Weight | 1kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Drive Mode | Static State | Static State | Static State | Static State | Static State |
| Control System | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
| Lifespan | 100000H | 100000H | 100000H | 100000H | 100000H |
| Grayscale Level | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
